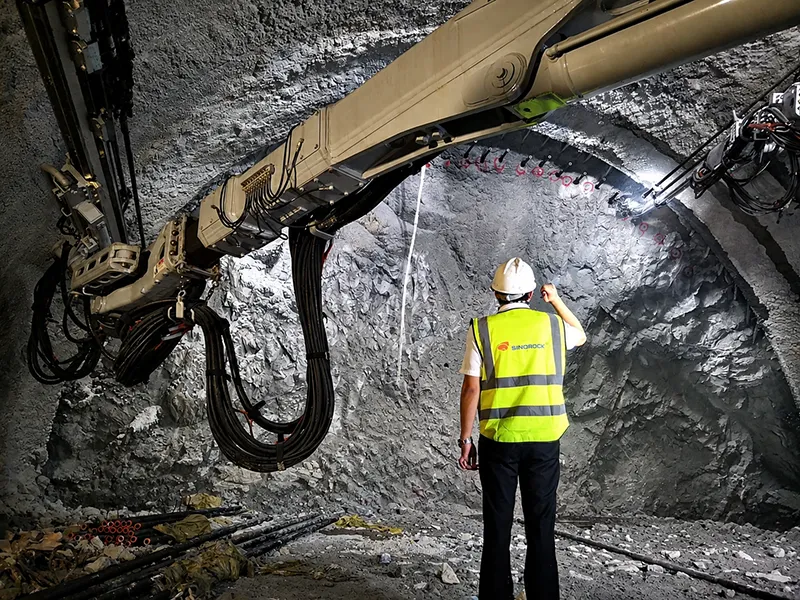

Self-Drilling Anchor Systems for Tunneling
Self-drilling anchor systems provide efficient and reliable ground support solutions for tunnel excavation, especially in weak, fractured, and unstable surrounding rock conditions. By integrating drilling, grouting, and anchoring into a single operation, the system improves construction efficiency and enhances tunnel stability.
The system is widely used for various tunnel support applications, including radial rock reinforcement, tunnel face stabilization, forepoling, self-drilling pipe umbrella systems, foot-locking, and tunnel portal reinforcement. Compared with conventional support methods, self-drilling anchors can be installed in difficult ground conditions where borehole collapse may occur, providing a safer and more adaptable solution for highway tunnels, railway tunnels, metro projects, hydropower tunnels, and other underground construction.
Self-drilling pipe umbrella systems are used for advance support in tunnels passing through weak, fractured, and unstable surrounding rock. By combining drilling, pipe installation, and grouting into one operation, the system provides efficient pre-support and improves excavation safety and stability.
Self-drilling anchor systems are applied for tunnel face reinforcement in soft ground, fractured rock, and unstable excavation conditions. They improve the self-supporting capacity of the tunnel face, reduce collapse risks, and ensure safer and more efficient excavation.
Self-drilling anchor systems are used for reinforcing tunnel portals, cut slopes, and unstable rock masses around tunnel entrances. The system provides reliable ground anchoring in complex geological conditions and improves long-term stability of slopes and portal structures
Projects
In tunnel support, the self-drilling anchor system can replace conventional rock bolts, ordinary hollow anchor rods, small-diameter grouting pipes, and traditional pipe roof systems, providing an efficient and reliable solution for weak, fractured, and difficult-to-drill surrounding rock conditions.

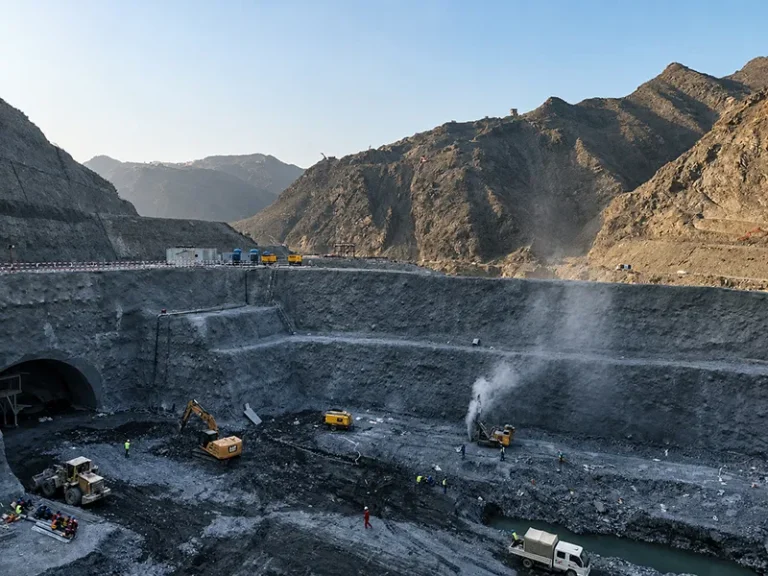

Pakistan MOHMAND Hydropower Self-Drilling Pipe Roofing System
Location: Pakistan
Application: Self-Drilling Pipe Roofing System
Service: R32 Self-Drilling Anchor Bolts
Recommended Specifications
Self-drilling pipe roof system consists hollow anchor bar, coupler and drill bit, which can be drilled and grouted at one time. Self-drilling pipe roof system can replace traditional pipe roofs in a variety of easily collapsed formation.
Advantages in Tunnel Applications
Reliable reinforcement for weak surrounding rock and complex underground conditions.

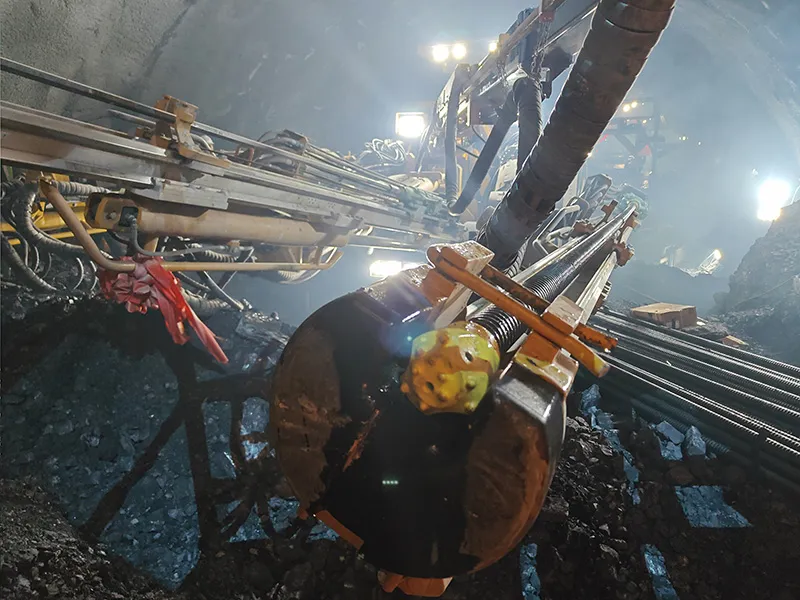

High Construction Efficiency
Conventional pipe roof installation involves multiple procedures, including drilling, withdrawing drill rods, inserting pipes, and grouting. In weak and unstable formations, borehole collapse may occur, requiring additional casing operations that slow down construction. The self-drilling pipe roof system integrates drilling and grouting into a single operation, reducing installation procedures and significantly improving construction efficiency.

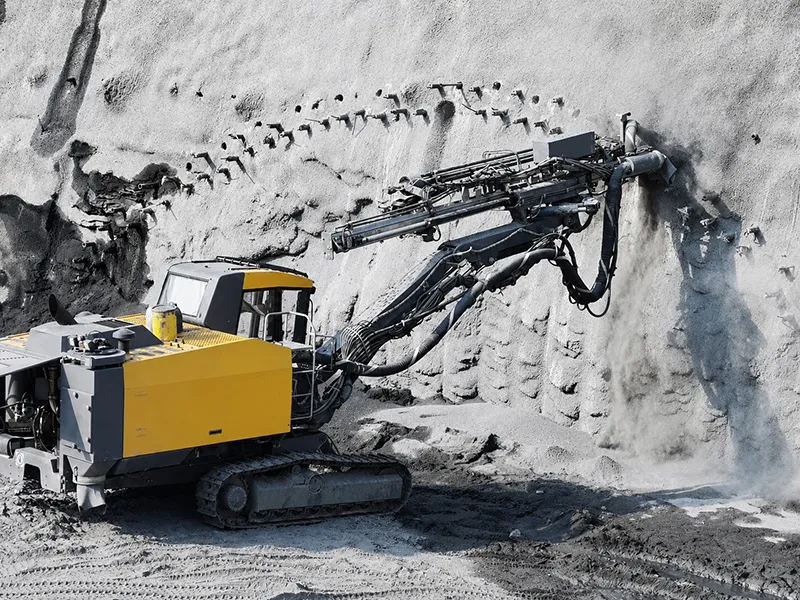

Excellent Adaptability
The self-drilling pipe roof system enables simultaneous drilling and grouting without withdrawing drill rods, making it highly suitable for fractured, loose, and unstable surrounding rock conditions. It provides reliable advance support performance across various geological environments, especially where conventional pipe roof installation is difficult.

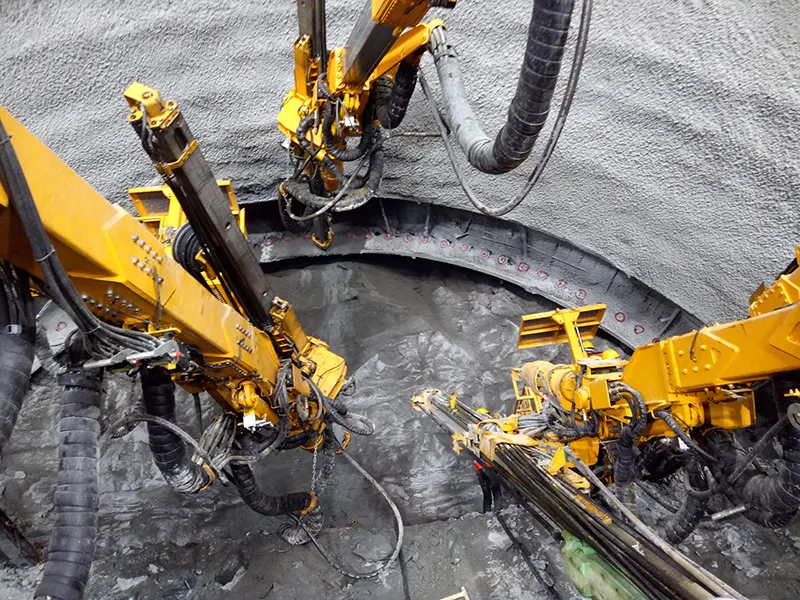

Reduced Labor Requirements
The lightweight design of the self-drilling pipe roof system, combined with compatibility with anchor drilling rigs, enables more efficient mechanized construction. It reduces manual labor requirements and allows workers to maintain a safer distance from the tunnel face, improving overall construction safety.

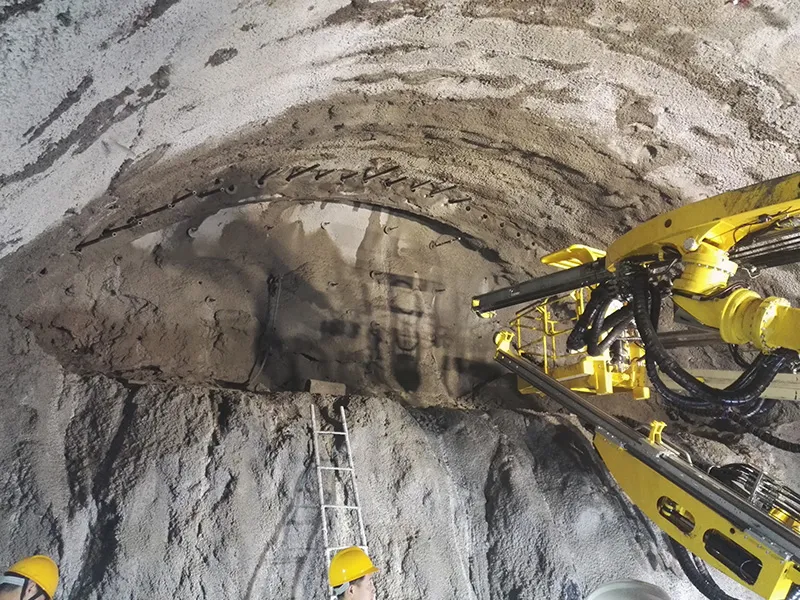

Lower Overall Construction Cost
By simplifying installation procedures, improving construction efficiency, and reducing labor and equipment requirements, the self-drilling pipe roof system helps shorten project timelines and lower overall construction costs. Compared with conventional pipe roof methods in poor-quality rock conditions, it can increase construction speed by more than 2 times and reduce total costs by over 20%.
